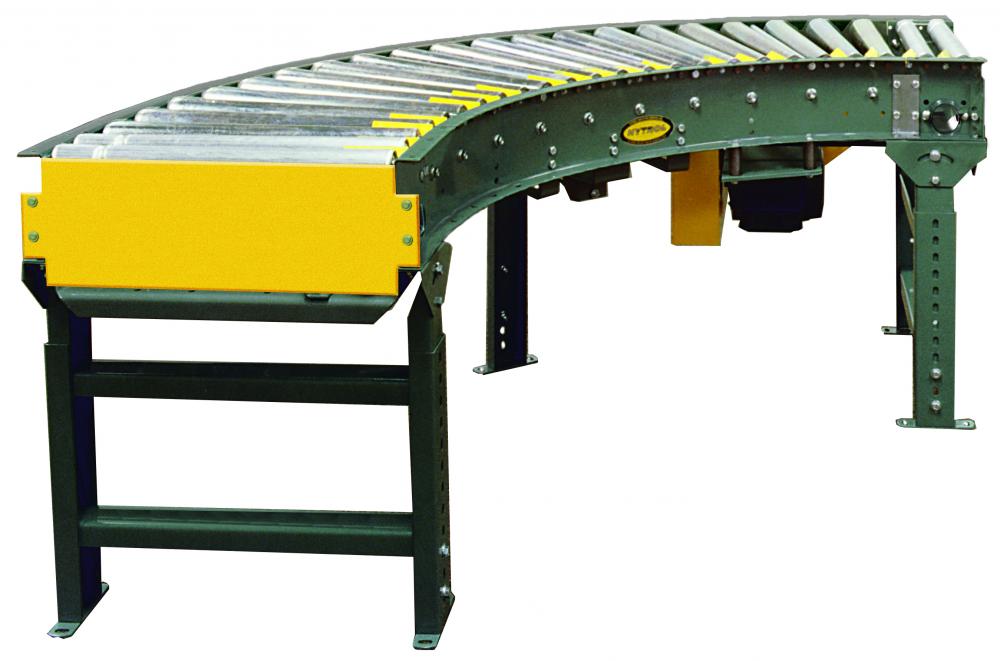

V-Belt Driven Curve Light Duty Accumulating Conveyor - 138-LRC

The Model 138-LRC is a light-duty live roller curve that provides a positive drive for negotiating 90°, 60°, 45°, or 30° turns. It may be self-powered or can be slave-driven from 138-ACC, LRS, or LRSS conveyors.

Model 138-LRC Features:

• 4 Bed Widths
• Reversible
• Adjustable LS-Type floor supports available

Model 138-LRC Specifications:

• Bed - 6-1/2" deep x 12 ga. formed steel frame powder painted
• Rollers - 1-3/8" dia. x 18 ga. galvanized roller (12" to 18" OAW) and 2-1/2" dia. tapered to 1-11/16" dia. x 16 ga. galvanized, and 1.9" dia. x 16 ga. galvanized straight roller (24" OAW)
• Overall Frame Widths: 12", 15" , 18" , 24"
• Capacity - 150 lbs. (distributed load)
