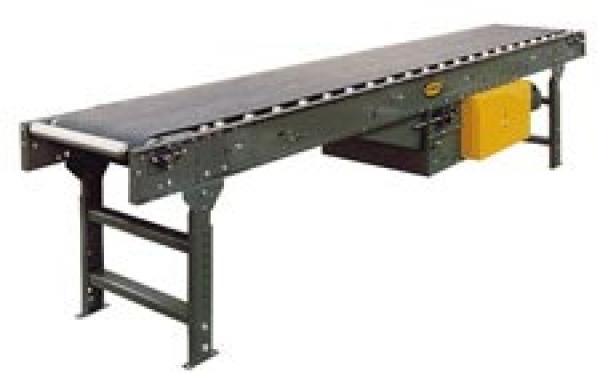

Medium Duty Belted Conveyor

The Model RB is designed to move heavier loads. Roller bed design reduces belt friction and provides greater capacity. Applications include: assembly, inspection and packing operations.

Model RB Features:

• Bed 6-1/2" deep x 12 ga. formed steel frame powder painted
• Rollers 1.9" dia. x 16 ga. galvanized rollers spaced every 6"
• Overall Frame Widths 16", 18", 20", 22", 24", 26", 28", 30", 34", 36", 40", 42", 48", 54", 60"
• Drive Center Drive Standard
• Motor 1/2 HP standard - 2 HP max.
• Supports Adjustable Floor Supports Available
• Capacity Maximum load per linear ft. of conveyor; 225 lbs. not to exceed rated capacities
• Reversible Yes
• Availability Online
